Hydrophobic PTFE membrane filter stands out in air filtration due to its remarkable resistance to water and ability to maintain precise particle retention. The hydrophobic surface repels water, so only pressures above the membrane’s water entry point allow moisture through, forming an effective barrier in humid environments. Manufacturers use advanced method, such as hollow fiber spinning machine, to ensure consistent pore size and filter strength. Hydrophobic membrane filters address common challenges in air filtration, including fouling, environmental impact, mechanical strength, and pore size control. Growing demand in industries worldwide highlights their superior performance and reliability.
Key Takeaways
- Hydrophobic PTFE membrane filter excels in air filtration by repelling water, ensuring consistent performance in humid environments.
- The filter achieves high particle retention, capturing over 99.98% of particles as small as 0.3 μm, which is crucial for maintaining clean air.
- PTFE’s chemical resistance allows these filters to withstand harsh substances, making them ideal for industrial applications.
- Low pressure loss in PTFE filters reduces energy consumption, supporting efficient air purification and lowering operational costs.
- With a lifespan of up to 30 years, hydrophobic PTFE membrane filter offers long-term reliability and reduced maintenance needs.
Hydrophobic PTFE Membrane Filter Overview
What Is a Membrane Filter?
A membrane filter acts as a selective barrier, allowing certain substances to pass while blocking others. In air filtration, these filters trap particles and contaminants, ensuring clean airflow. The hydrophobic PTFE membrane filter stands out because it uses polytetrafluoroethylene (PTFE) as its sole material. This composition gives it unique properties that set it apart from other filters.
Table: Defining Characteristics of Hydrophobic PTFE Membrane Filter
| Characteristic | Description |
|---|---|
| Composition | Made of polytetra-fluorethylene (PTFE) only. |
| Hydrophobicity | Permanently hydrophobic and resistant to wetting by air humidity. |
| Comparison with Hydrophilic Filters | Unlike hydrophilic filters, they are not wetted by moisture. |
Hydrophobic Properties
Hydrophobic membrane filters repel water, making them ideal for air filtration in humid environments. PTFE membrane filters do not absorb water, so they maintain their performance even when exposed to moisture. In contrast, hydrophilic materials work best for liquid filtration and can lose efficiency in gas applications. PTFE membranes also resist a wide range of chemicals, including organic solvents and corrosive substances. This chemical stability allows hydrophobic PTFE membrane filter to perform reliably in extreme conditions, where other air filtration materials might fail.
Hydrophobic PTFE membrane filter achieves industry-standard efficiency in gas and solvent filtration, while hydrophilic PTFE filters excel in aqueous applications.
| Filter Type | Application Type | Efficiency Level |
|---|---|---|
| Hydrophobic PTFE | Gas and solvent filtration | Industry standard for gas filtration |
| Hydrophilic PTFE | Aqueous filtration | Higher efficiency in pharmaceuticals and food & beverage applications |
PTFE Material

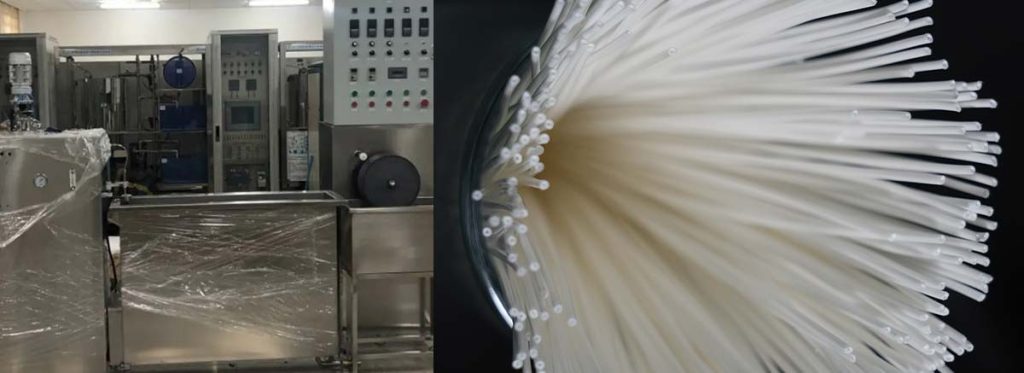

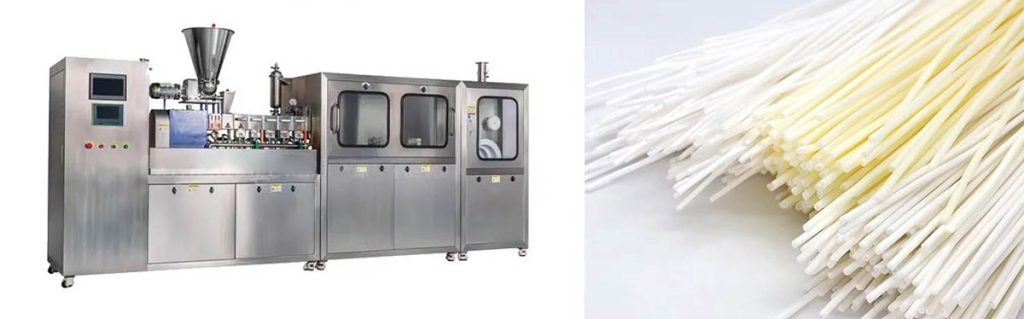

PTFE gives the membrane filter its strength, durability, and resistance to chemicals. Manufacturers use advanced techniques, such as the hollow fiber membrane spinning machine, to create membranes with precise pore sizes and consistent quality. Typical pore sizes for hydrophobic PTFE membrane filter range from 0.2 to 10 micrometers, allowing for effective particle retention and airflow.
Recent advancements in PTFE membrane manufacturing include improved microporous structures for better flow rates, surface treatments that resist fouling, and nanocoatings that add antimicrobial properties. Additive manufacturing and digital tools now help create custom filter designs and enable real-time performance monitoring. These innovations, combined with sustainable production methods, ensure that hydrophobic PTFE membrane filter continues to lead in air filtration technology.
How It Works?
Filtration Mechanism
Hydrophobic PTFE membrane filter uses a unique structure to separate particles from air. The membrane contains microscopic pores that allow air molecules to pass through while trapping contaminants. PTFE provides a smooth surface, which reduces the chance of particles sticking to the membrane. This design increases filtration efficiency and ensures consistent performance. Manufacturers often select PTFE for its ability to maintain pore size and prevent clogging. The membrane’s structure supports high airflow rates and reliable particle retention.
Key steps in the filtration process:
- Air enters the filter and contacts the PTFE membrane.
- Particles larger than the pore size remain on the surface.
- Clean air passes through, leaving contaminants behind.
Moisture Resistance
Hydrophobic membrane filters excel in environments with high humidity. PTFE’s hydrophobic nature prevents water from entering the membrane pores. This property keeps the filtration process stable, even when exposed to moisture.
When hydrophobic membranes come into contact with water, surface tension forces act to repel the water from the pores. Water will not enter the pores and the membranes will act as a barrier to water flow, unless the water is applied at pressures greater than the membrane’s water entry pressure.
This moisture resistance ensures that the hydrophobic PTFE membrane filter continues to function effectively, even in challenging conditions. The filter maintains airflow and particle retention, which is critical for air filtration applications.
Chemical Durability
PTFE membrane filters offer outstanding chemical durability. The material resists aggressive fluids, organic solvents, and harsh industrial gases. Hydrophobic PTFE membrane filters achieve retention ratings as fine as 0.01μ, which allows them to remove even the smallest contaminants. In air and vent applications, PTFE outperforms polypropylene and PVDF by maintaining hydrophobicity and flow rates. Ultradyne PTFE membrane filters provide high assurance of chemical compatibility and filtration performance. They deliver superior flow rates and long service life, making them suitable for severe process conditions.
The combination of hydrophobic properties, chemical resistance, and advanced membrane design makes PTFE the preferred choice for demanding air filtration environments.
Advantages in Air Filtration
Particle Retention
Hydrophobic PTFE membrane filter delivers outstanding particle retention, which is essential for air purification. The membrane structure features uniform pores that trap airborne contaminants while allowing clean air to pass through. PTFE provides a smooth, non-stick surface, so particles do not accumulate easily. This design supports consistent filtration performance over time.
Hydrophobic membrane filters excel in removing fine particles from the air. During air quality monitoring, these filters achieved an ultra-high particle removal efficiency of over 99.98% for particles measuring 0.3 μm. They also demonstrated nearly 100% efficiency for particles measuring 2.5 μm. These results show that hydrophobic PTFE membrane filter can capture both large and small aerosols, making them ideal for environments where precise air purification is required.
High particle retention ensures that air purification systems maintain healthy indoor air quality and protect sensitive equipment.
Low Pressure Loss
PTFE membrane filters maintain low pressure loss, which is important for efficient air purification. The membrane’s microporous structure allows air to flow freely while blocking contaminants. PTFE resists clogging, so the filter does not restrict airflow even after extended use. This property reduces energy consumption and keeps ventilation systems running smoothly.
Operators in industrial settings value low pressure loss because it helps maintain consistent airflow and reduces operational costs. PTFE membranes support high filtration efficiency without sacrificing performance. The combination of low pressure loss and high filtration efficiency makes hydrophobic membrane filters a preferred choice for demanding air purification applications.
| Feature | Benefit |
|---|---|
| Low pressure loss | Reduces energy use and maintains airflow |
| High filtration efficiency | Ensures clean air output |
| Clog resistance | Extends filter service life |
Application Versatility
PTFE membrane filters offer versatility across many air purification scenarios. Hydrophobic properties allow these filters to perform reliably in aggressive environments, such as chemical plants and laboratories. PTFE withstands strong acids, harsh solvents, and corrosive gases without degradation. The membrane’s durability means fewer replacements and lower maintenance costs.
Hydrophobic PTFE membrane filter technology supports a wide range of applications, including sterile filtration, venting, and aerosol sampling. In air quality monitoring, these filters provide accurate results by preventing moisture interference and capturing fine particles. Operators use PTFE membranes to protect sensitive equipment, maintain sterile conditions, and ensure regulatory compliance.
- Superior chemical resistance allows PTFE membranes to function in harsh industrial environments.
- High filtration efficiency, often exceeding 99.99%, supports sterile filtration and air purification.
- Durability reduces the need for frequent filter changes, lowering costs and improving reliability.
Hydrophobic membrane filters play a key role in air purification systems for hospitals, laboratories, manufacturing plants, and environmental monitoring stations.
Applications
Air Quality Monitoring
Hydrophobic PTFE membrane filters play a vital role in air quality monitoring. These filters allow air to pass through while capturing particulate matter as small as 0.1μm. Their hydrophobic nature prevents moisture from interfering with sample collection, which is essential for accurate results in humid environments. Scientists and technicians use these filters for monitoring airborne contaminants in urban, industrial, and laboratory settings. PTFE filters for monitoring airborne contaminants ensure reliable data by maintaining high filtration efficiency, even during aerosol sampling or venting. This performance makes them a preferred choice for environmental agencies and research institutions.
PTFE filters support air purification efforts by providing consistent results in phase separation and aerosol sampling, regardless of humidity levels.
Industrial Use
PTFE filters serve many industrial applications due to their durability and chemical resistance. Industries such as electronics, pharmaceuticals, and food processing rely on these filters for high-purity gas filtration, sample purification, and microbial control. The following table highlights key performance data for PTFE filters in industrial air filtration systems:
| Parameter | Details |
|---|---|
| Pore Size | 0.1μm to 10μm |
| Flow Rate @23°C, H2O | ≥ 6 mL/min/cm² @1 bar (0.22μm), ≥ 30 mL/min/cm² @1 bar (0.45μm) |
| Maximum Operating Pressure | 4.2 bar @23°C, 1.5 bar @85°C |
| Chemical Compatibility | Resistant to almost all chemicals |
| pH Range | 1 – 14 |
PTFE filters also support quality control, sterility inspection, and clarification of corrosive substances. Their long operational life and minimal maintenance requirements make them cost-effective for air purification in demanding environments.
Equipment Protection
PTFE membrane filters protect sensitive equipment in environments with high moisture or chemical exposure. Their hydrophobic surfaces prevent water penetration, which is crucial for filters to protect vacuum pumps and other delicate devices. PTFE maintains chemical stability, even when exposed to aggressive chemicals, ensuring the integrity of the filtration process. The selective permeability of PTFE allows gas to pass while filtering out contaminants, which enhances equipment protection and extends service life.
- PTFE is one of the most chemically resistant materials available.
- Only a few fluorinated acids are incompatible with sintered PTFE membranes, making them suitable for a wide range of applications.
Air purification systems benefit from PTFE’s durability and reliability, especially in settings where equipment faces constant exposure to moisture or harsh chemicals.
Conclusion
Hydrophobic PTFE membrane filter delivers outstanding air purification through high efficiency, chemical stability, and moisture resistance. PTFE resists fouling and maintains performance for up to 30 years, reducing maintenance costs. Advanced manufacturing, such as hollow fiber spinning machine, improves reproducibility and scalability. PTFE supports continuous compliance in harsh environments and adapts to custom filtration needs. These filters remain permanently hydrophobic, making them ideal for demanding air purification scenarios.
| Feature | Benefit |
|---|---|
| PTFE durability | Lasts up to 30 years |
| Moisture resistance | Maintains air purification in humidity |
| Chemical stability | Filters aggressive chemicals |
PTFE membrane filters offer long-lasting solutions for air purification, but their disposal requires attention due to environmental concerns.
FAQ
What Makes Hydrophobic PTFE Membrane Filters Different from Other Air Filters?
Hydrophobic PTFE membrane filters resist water and chemicals. They maintain high filtration efficiency in humid environments. Other filters may lose performance when exposed to moisture or aggressive chemicals.
Can Hydrophobic PTFE Membrane Filters Be Used for Air and Gas Filtration?
Yes. Hydrophobic PTFE membrane filters work well for air and gas filtration. Their structure allows gases to pass while trapping particles and preventing moisture interference.
How Long Do Hydrophobic PTFE Membrane Filters Last?
Hydrophobic PTFE membrane filters can last up to 30 years. Their durability comes from strong chemical resistance and a robust structure. Regular maintenance helps extend their service life.
Are Hydrophobic PTFE Membrane Filters Safe for Sensitive Equipment?
Hydrophobic PTFE membrane filters protect sensitive equipment. They prevent water and contaminants from entering devices. PTFE’s chemical stability ensures reliable operation in harsh environments.
What Is The Typical Pore Size Range for Hydrophobic PTFE Membrane Filters?
Most hydrophobic PTFE membrane filters have pore sizes between 0.2 and 10 micrometers. This range supports effective particle retention and high airflow rates.
