The Science Behind Reinforced Hollow Fiber Membrane Fabrication
By LydiaPosted on April 19, 2025Category: Hollow Fiber
Reinforced hollow fiber membrane fabrication combines advanced material science and precision engineering. This process creates hollow fiber membranes with remarkable structural integrity and functional performance. The outer diameters of these fibers typically measure around 1000 µm, while inner diameters range from 640 to 300 µm. Wall thicknesses increase from approximately 200 to 360 µm, enhancing durability. These features, coupled with burst pressures rising from 17 to 83 bar, make them indispensable in filtration systems.
Reinforced hollow fiber membrane is strong and useful for filtering.
Polymers like PVDF and PES affect how well membranes work and last.
Special methods like phase inversion and spinning machines shape membranes.
Adding nanomaterials makes membranes better, like self-cleaning and stronger.
Treatments and coatings help membranes work well and last longer.

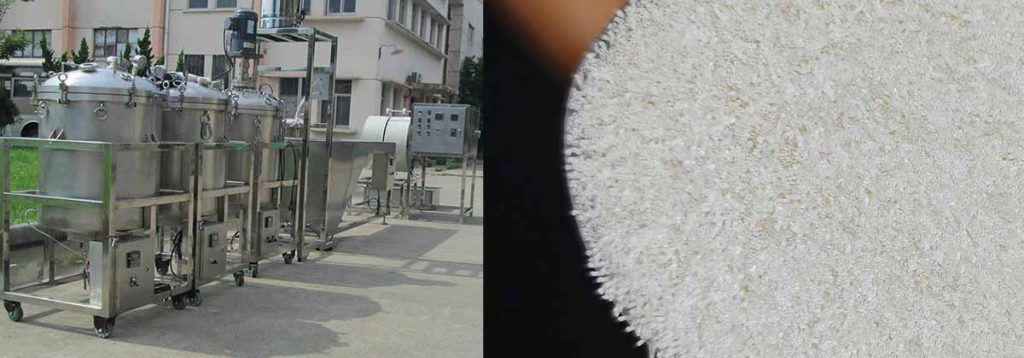

Understanding Reinforced Hollow Fiber Membrane
Structure and Composition
Reinforced hollow fiber membrane is engineered with a unique structure that combines strength and functionality. The membrane consists of a hollow cylindrical core surrounded by a porous outer layer. The inner core provides structural support, while the outer layer facilitates filtration. The composition often includes polymers like polyethersulfone (PES) or polyvinylidene fluoride (PVDF), which offer excellent chemical resistance and thermal stability.
Recent studies highlight the molecular structure of elastomeric hollow fiber membranes, which exhibit tensile and suture retention strengths suitable for medical applications. Their permeability aligns with that of blood microvessels, making them versatile for various uses. Increasing polymer concentration during fabrication enhances mechanical properties, directly improving membrane performance. This relationship underscores the importance of material selection in hollow fiber membrane production.
Applications in Filtration and Separation
Hollow fiber membranes play a critical role in filtration and separation processes across industries. In water treatment applications, they remove contaminants like bacteria, viruses, and suspended solids, ensuring clean and safe water. Their high water flux, achieved through a thinner separation layer and porous inner structure, makes them efficient for large-scale operations.
These membranes also excel in industrial separation processes, such as gas separation and solvent recovery. The dense outer surface minimizes fouling, reducing maintenance requirements and extending operational life. For instance, braid hollow fiber membranes can withstand pressures up to 10.3 MPa, making them ideal for high-pressure systems. This durability, combined with enhanced water flux, positions reinforced hollow fiber membrane as a cornerstone of modern membrane technology.
Materials Used in Membrane Fabrication
Polymers and Their Properties
Polymers form the backbone of reinforced hollow fiber membrane. Their selection significantly influences membrane performance and durability. Polyvinylidene fluoride (PVDF) and polyethersulfone (PES) are among the most commonly used polymers. PVDF offers excellent chemical resistance and thermal stability, making it ideal for harsh environments. PES, on the other hand, provides high mechanical strength and superior fouling resistance.
Recent experiments reveal how polymer properties affect membrane formation. For instance, PVDF enhances elongation at break, improving ductility for self-cleaning applications. However, higher PVDF content reduces tensile strength and elasticity, which may impact structural integrity. The table below summarizes key performance metrics for polymer selection:
Property
Description
Tensile Strength
Decreases with PVDF presence; indicates material strength.
Elongation at Break
Increases plasticity with PVDF; suggests better ductility for self-cleaning applications.
Young’s Modulus
Elasticity decreases significantly with higher PVDF content; affects structural integrity.
Hydrophilicity
Measured by contact angle; lower angles indicate better water affinity, enhancing membrane performance.
Permeability
Slight negative correlation with contact angle; increased hydrophilicity may enhance permeability.
Reinforcements for Durability
Reinforcements play a critical role in improving the durability of hollow fiber membranes. Tubular braids made from polyethylene terephthalate (PET) or polypropylene (PP) are widely used. These materials provide structural support and enhance the membrane’s ability to withstand high pressures. The growing preference for tubular braid-reinforced (BR) hollow fiber ultrafiltration membranes highlights their effectiveness in membrane bioreactor (MBR) systems. Their high permeance and suitability for large-scale production make them a popular choice in modern membrane technology.
The hollow fiber spinning machine ensures precise integration of reinforcements during hollow fiber production. This process guarantees uniformity in membrane structure, which is essential for maintaining consistent performance under varying operational conditions.
Additives for Enhanced Functionality
Additives improve the functionality of hollow fiber membranes by addressing specific challenges like fouling and biofouling. Hydrophilic additives, such as polyethylene glycol (PEG), enhance water affinity, reducing fouling and improving membrane permeability. Antimicrobial agents, including silver nanoparticles, combat biofouling by inhibiting microbial growth on the membrane surface.
Incorporating nanomaterials as additives further boosts membrane performance. For example, titanium dioxide (TiO₂) nanoparticles enhance photocatalytic activity, enabling self-cleaning properties. These advancements in additive technology continue to push the boundaries of hollow fiber membrane production, ensuring better efficiency and longer operational life.
Techniques for Hollow Fiber Membrane Production
Role of the Hollow Fiber Spinning Machine
The hollow fiber spinning machine plays a pivotal role in hollow fiber membrane production. This machine ensures precise control over the spinning process, which directly impacts the structural properties and performance of the membranes. By regulating parameters such as the stretching ratio (SR), the spinning machine optimizes pore size distribution and enhances membrane permeability. For instance, operational data reveals that a stretching ratio of 1.5 results in a narrow pore size distribution and increased CO2 permeance. These improvements reduce mass transfer resistance, making the membranes highly effective for gas absorption applications.
Additionally, the hollow fiber spinning machine integrates reinforcements like tubular braids into the membrane structure. This integration enhances the durability and pressure resistance of the membranes, ensuring consistent performance in demanding environments. The machine’s ability to maintain uniformity in fiber dimensions also supports large-scale manufacturing, reducing production costs and enabling economies of scale. These advancements highlight the importance of the hollow fiber spinning machine in producing high-performance hollow fiber membranes.
Phase Inversion Method
The phase inversion method is a widely used technique in hollow fiber membrane fabrication. This process involves transforming a polymer solution into a solid membrane through controlled phase separation. The method begins with the preparation of a polymer solution, which is extruded through a spinneret to form hollow fibers. These fibers are then immersed in a coagulation bath, where the solvent exchanges with a non-solvent, causing the polymer to solidify.
This technique allows for precise control over membrane formation, enabling the creation of membranes with tailored pore structures and properties. Recent advancements in polymer materials and membrane structures have further enhanced the effectiveness of this method. These innovations improve filtration performance, durability, and fouling resistance, making the phase inversion method a cornerstone of modern membrane technology.
Post-Fabrication Treatments
Post-fabrication treatments are essential for enhancing the functionality and longevity of hollow fiber membranes. These treatments address challenges such as fouling, biofouling, and structural fatigue, ensuring optimal membrane performance in various applications. Techniques like high-frequency mechanical impact (HFMI) have shown significant potential in extending the fatigue life of membranes, even in corrosive environments. The table below summarizes the efficiency improvements achieved through post-fabrication treatments:
Treatment Technique
Efficiency in Corrosive Environments
Potential for Fatigue Life Extension
High-Frequency Mechanical Impact (HFMI)
Decreases with corrosion
High potential even in corrosive conditions
In addition to mechanical treatments, chemical modifications and surface coatings are often applied to improve membrane permeability and reduce fouling. For example, hydrophilic coatings enhance water affinity, while antimicrobial agents prevent biofouling by inhibiting microbial growth. These post-fabrication treatments ensure that hollow fiber membranes maintain their performance and reliability in demanding water treatment applications and industrial processes.
Strategies for Membrane Modification
Surface Coating Techniques
Surface coating techniques enhance the functionality of hollow fiber membranes by modifying their surface properties. These coatings improve membrane permeability, reduce fouling, and extend operational life. Polydimethylsiloxane (PDMS) coatings have demonstrated significant efficiency gains in gas separation applications. For example:
All six types of membranes tested showed increased selectivity after PDMS coating.
Poly(ether block amide) (Pebax) coatings, however, did not enhance gas permeance or selectivity, highlighting the importance of material selection in coating processes.
Innovative trends in surface functionalization, such as layer-by-layer assembly and chemical vapor deposition, have further advanced membrane modification strategies. These techniques allow precise control over surface properties, enabling tailored solutions for diverse applications like reverse osmosis and biomedical uses.
Tip: Selecting the right coating material is crucial for optimizing membrane performance in specific applications.
Chemical and Structural Modifications
Chemical and structural modifications play a vital role in improving the efficiency and durability of hollow fiber membranes. These modifications alter the membrane’s internal structure or chemical composition to enhance its functionality. For instance, chemical cross-linking strengthens polymer chains, increasing resistance to fouling and biofouling. Structural adjustments, such as altering pore size distribution, improve membrane separation processes by optimizing permeability and selectivity.
Recent advancements in fabrication processes have enabled precise control over these modifications. Techniques like plasma treatment and graft polymerization introduce functional groups onto the membrane surface, enhancing hydrophilicity and reducing fouling. These methods also improve water affinity, which is critical for applications in water treatment systems.
Note: Chemical and structural modifications must balance enhanced functionality with maintaining the mechanical integrity of the membrane.
Incorporating Nanomaterials
Nanomaterials have revolutionized hollow fiber membrane production by significantly enhancing membrane functionality. Incorporating nanomaterials like titanium dioxide (TiO₂) and graphene oxide improves catalytic activity, fouling resistance, and membrane permeability. For example, TiO₂ nanoparticles enable self-cleaning properties through photocatalytic activity, reducing maintenance requirements.
Statistical evidence supports the efficiency gains achieved through nanomaterial integration:
Membrane Type
Performance Metric
Comparison
Nanocomposite Membranes
Catalytic efficiency
Less efficient than anodized alumina membranes with PEMs
PEM-based Nanofiltration Membranes
Flux and rejection performance
Compared with commercial NF270 membrane
These advancements have expanded the scope of membrane applications, including gas separation, water purification, and biomedical uses. Nanomaterials also enhance the durability of reinforced hollow fiber membranes, making them suitable for high-pressure systems and harsh environments.
Tip: Incorporating nanomaterials requires careful consideration of compatibility with the base polymer to ensure optimal performance.
Conclusion
Reinforced hollow fiber membrane represents a breakthrough in filtration and separation technology. The fabrication involves precise techniques like phase inversion and the integration of reinforcements using the hollow fiber spinning machine. Post-fabrication treatments and advanced modification strategies, such as surface coatings and nanomaterial incorporation, further enhance their performance. These steps ensure durability, permeability, and resistance to fouling and biofouling.
Innovation drives continuous improvement in membrane technology. Advancements in materials like PES and PVDF have expanded the scope of applications, from water treatment to industrial processes. The hollow fiber RO membrane market is projected to grow at a CAGR of over 10%, fueled by increasing demand for clean water and technological progress. Industries such as textiles, electronics, and agriculture are expected to benefit significantly.
Future trends indicate a bright outlook for hollow fiber membranes. Rising urbanization and industrial activities in developing regions will further boost their adoption. These membranes hold immense potential to address global challenges, ensuring sustainable solutions across diverse sectors.
