Key Differences Between Hollow Fiber Membrane and Reverse Osmosis Explained
By LydiaPosted on April 25, 2025Category: Hollow Fiber
Hollow fiber membrane vs reverse osmosis highlights two distinct approaches to water purification. Hollow fiber membranes use ultrafiltration to remove suspended particles, bacteria, and other impurities. Their unique structure allows efficient filtration with minimal energy requirements. Reverse osmosis, on the other hand, excels at removing dissolved solids by forcing water through a semi-permeable membrane under pressure. Both technologies play vital roles in water filtration, yet their mechanisms and applications differ significantly. Understanding these differences helps in choosing the right solution for specific water needs.
Choosing between hollow fiber membrane vs reverse osmosis depends on the type of contaminants and desired water quality.
Key Takeaways
Hollow fiber membranes save energy and create little wastewater. They are great for saving water in important uses.
Reverse osmosis systems remove dissolved solids well. They make very pure water, which is needed for medicines and removing salt from water.
Picking the right filter depends on the water’s dirt and how clean you want it to be.
Hollow fiber membranes are cheaper to start with and need less care. They are a good choice for small projects.
Think about costs and how it affects the environment when choosing a water cleaning system. Make sure it fits your needs.
Role of Hollow Fiber Membrane and Reverse Osmosis
Hollow Fiber Membrane
Hollow fiber membrane plays a crucial role in ultrafiltration processes. The membrane consists of numerous tiny fibers, each with a hollow core, allowing water to pass through while trapping impurities. The design enables the removal of suspended particles, bacteria, and viruses, making the membrane highly effective for producing clean water. Recovery efficiencies for hollow fiber membrane vary depending on the contaminant. For example, they achieve 97% to 100% recovery for E. faecalis and 82% to 99% for C. parvum. This makes them ideal for applications requiring high filtration precision, such as municipal water treatment and industrial processes.

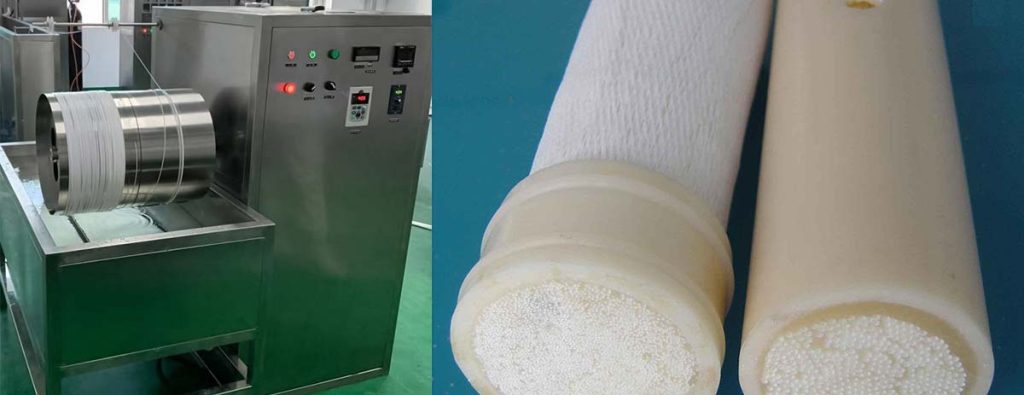

Role of the Hollow Fiber Spinning Machine
The hollow fiber spinning machine is essential in manufacturing hollow fiber membranes. It creates the fine fibers used in these membranes by spinning polymer solutions into hollow structures. This process ensures uniform pore size and structural integrity, which are critical for effective filtration. The machine’s precision directly impacts the membrane’s performance, influencing its ability to filter contaminants efficiently. By producing high-quality fibers, the spinning machine supports the widespread use of hollow fiber membranes in water purification systems.
Reverse Osmosis
Reverse osmosis is a powerful method for removing dissolved solids from water. It works by applying pressure to force water through a semi-permeable membrane, leaving contaminants behind. This process achieves a salt rejection rate of 95% to 99%, making it highly effective for desalination and treating brackish water. For every 100 gallons processed, reverse osmosis systems can recover up to 80 gallons of purified water. Additionally, they reduce total dissolved solids (TDS) to meet potable water standards, which require TDS levels below 500 mg/L. These capabilities make reverse osmosis suitable for both industrial and household applications where high water purity is essential.
Key Differences in Filtration Mechanisms
Pore Size and Filtration Capabilities
The pore size of a membrane determines its ability to filter specific contaminants. Hollow fiber membranes feature a wide range of pore sizes, from macropores (>500 nm) to ultra micropores (<0.5 nm). This versatility allows them to perform tasks such as microfiltration, ultrafiltration, and even gas separation. Reverse osmosis membranes, on the other hand, rely on micropores (0.5-2 nm) to remove dissolved solids and impurities at the molecular level.
Reverse osmosis excels at removing dissolved salts and other impurities, making it ideal for applications requiring high water purity. Hollow fiber membranes, with their larger pore sizes, are better suited for removing suspended particles, bacteria, and viruses.
Tip: When choosing between these technologies, consider the type of contaminants present in the water and the desired filtration outcome.
Pressure Requirements
Pressure plays a critical role in the performance of both hollow fiber membranes and reverse osmosis systems. Hollow fiber membranes typically operate at lower pressures, making them energy-efficient and suitable for applications like ultrafiltration. Reverse osmosis systems require higher pressures to overcome osmotic pressure and push water through their semi-permeable membranes. Feedwater pumps supply this pressure, ensuring optimal performance.
For reverse osmosis systems, the pressure requirements vary based on the type of water being treated. Brackish water systems may require pressures of up to 80 bar, while seawater desalination systems often demand pressures exceeding 120 bar. Hollow fiber membranes, in contrast, can function effectively at pressures as low as 29 bar, depending on the application.
Note: Higher pressure requirements in reverse osmosis systems result in greater energy consumption, which can impact operational costs and environmental sustainability.
Filtration Efficiency
Filtration efficiency depends on the membrane type and its design. Hollow fiber membranes offer high recovery rates for suspended particles and microorganisms, achieving up to 99% removal efficiency for contaminants like Cryptosporidium parvum. Reverse osmosis systems, however, excel at removing dissolved solids, achieving salt rejection rates of 95% to 99%.
Membrane Type
Maximum Pressure (bar)
Effective Membrane Area (m²)
Hollow Fiber Membranes
29 (PRO), 69 (RO)
N/A
Spiral-Wound RO Membranes
80 (standard), 120 (special design)
~6 (special) vs. ~37 (typical)
Reverse osmosis systems typically feature spiral-wound membranes with larger effective filtration areas, enhancing their ability to process large volumes of water. Hollow fiber membranes, while smaller in size, provide efficient filtration for specific applications, such as municipal water treatment and industrial processes.
Tip: Consider filtration efficiency alongside energy usage and environmental impact when selecting a water purification system.
Efficiency and Environmental Impact
Wastewater Production
Hollow fiber membranes and reverse osmosis systems differ significantly in wastewater production. Hollow fiber membranes produce minimal wastewater during filtration. Their design allows most of the water to pass through the fibers, leaving only a small amount of concentrate. This makes them highly efficient for applications where water conservation is essential.
Reverse osmosis systems, however, generate more wastewater. These systems require a portion of the feed water to flush away dissolved solids and impurities. For every gallon of purified water, reverse osmosis systems may produce up to four gallons of wastewater. This can be a concern in areas where water resources are limited.
Fact: Hollow fiber membranes are often preferred in regions with water scarcity due to their low wastewater production.
Energy Usage
Energy consumption varies between these two technologies.Hollow fiber membranesoperate at lower pressures, which reduces energy requirements. This makes them an energy-efficient choice for ultrafiltration processes.
Reverse osmosis systems, on the other hand, demand higher energy input. The high pressure needed to push water through the semi-permeable membrane increases energy usage. For example, seawater desalination systems require significant energy to overcome osmotic pressure.
Tip: Consider energy costs when selecting a water filtration system, especially for large-scale operations.
Environmental Considerations
Both technologies impact the environment differently. Hollow fiber membranes, with their low energy usage and minimal wastewater production, have a smaller environmental footprint. They are ideal for sustainable water treatment solutions.
Reverse osmosis systems, while effective, can strain resources. High energy consumption and wastewater production contribute to their environmental impact. However, advancements in technology aim to improve their sustainability.
Note: Choosing the right system depends on balancing water needs with environmental priorities.
Applications and Suitability
Industrial Applications
Hollow fiber membranes and reverse osmosis systems serve critical roles in industrial water treatment. Industries often require large volumes of purified water for processes such as cooling, boiler feed, and product manufacturing.Hollow fiber membranesexcel in ultrafiltration, removing suspended solids, bacteria, and viruses. Their ability to operate at lower pressures makes them energy-efficient and cost-effective for industries prioritizing operational savings.
Reverse osmosis systems, on the other hand, are ideal for applications requiring high-purity water. For example, in pharmaceutical manufacturing, reverse osmosis removes dissolved salts and organic compounds, ensuring compliance with stringent quality standards. Similarly, in power plants, these systems desalinate brackish or seawater to produce demineralized water for steam generation.
Case studies highlight the effectiveness of these technologies in industrial settings. A hollow-fiber membrane system with a surface area of 139.6 m² demonstrated its capability in treating acid mine drainage at 2758 kPa. It achieved near 99% water recovery, showcasing its efficiency in challenging environments. Reverse osmosis systems, while generally superior in performance, achieved 75% recovery over 2,000 hours under optimized conditions, proving their reliability in long-term operations.
Industries should evaluate their specific water treatment needs, including contaminant levels and operational costs, to select the most suitable technology.
Municipal and Household Applications
Municipalities and households rely on both hollow fiber membranes and reverse osmosis systems for clean water supply.Hollow fiber membranesare commonly used in municipal water treatment plants to remove pathogens and suspended particles. Their high recovery rates and minimal wastewater production make them an environmentally friendly choice for large-scale applications.
In households, hollow fiber membranes are often integrated into point-of-use filtration systems. These systems provide safe drinking water by removing bacteria and viruses without requiring high energy input. Reverse osmosis systems, however, are more suitable for households needing to reduce dissolved solids, such as salts and heavy metals. They are particularly effective in areas with hard water or high salinity levels.
Field tests have demonstrated the performance of these technologies in municipal and household settings. For instance, hollow fiber reverse osmosis membranes used in renovating secondary municipal effluent achieved sodium chloride rejections of 80-95% at 250 psi. These systems produced 50-300 gallons of water per day, meeting the needs of small communities and individual households. Additionally, innovative designs like woven hollow fiber fabric improved retention and minimized fouling, ensuring consistent performance over time.
Municipalities and homeowners should consider factors such as water quality, energy consumption, and maintenance requirements when choosing a filtration system.
Choosing the Right Technology
Selecting between hollow fiber membranes and reverse osmosis systems depends on several criteria. The nature of the process fluid, including the molecular weight of dissolved species and the loading of suspended solids, plays a significant role. For example, hollow fiber membranes are better suited for fluids with high levels of suspended particles, while reverse osmosis is ideal for removing dissolved salts and small molecules.
Operational conditions, such as pH levels, temperature, and pressure, also influence the choice. Hollow fiber membranes perform well under a wide range of pH levels and lower pressures, making them versatile for various applications. Reverse osmosis systems, however, require higher pressures and specific operating conditions to achieve optimal performance.
Determines compatibility with membrane technology.
Molecular weight of dissolved species
Affects the choice of membrane based on size exclusion properties.
Nature and loading of suspended solids
Influences membrane fouling and cleaning requirements.
pH level
Impacts membrane material compatibility and performance.
Inlet process stream temperature
Affects membrane performance and operational efficiency.
Operational pressures
Different technologies require varying pressures for optimal performance.
Specific applications
Certain applications may favor one technology over the other based on performance needs.
Decision-makers should assess these criteria alongside budget constraints and environmental considerations to ensure the chosen technology aligns with their water treatment goals.
Cost and Maintenance
Initial Costs
The initial cost of implementing hollow fiber membranes or reverse osmosis systems depends on several factors, including system size, complexity, and application. Hollow fiber membranes generally have lower upfront costs due to their simpler design and lower pressure requirements. These systems are often more affordable for small-scale applications, such as municipal water treatment or household filtration.
Reverse osmosis systems, however, require higher initial investments. The need for high-pressure pumps, energy recovery devices, and specialized membranes increases their cost. For industrial applications, such as seawater desalination, the capital expenditure can be significant. Despite the higher cost, reverse osmosis systems provide unmatched efficiency in removing dissolved solids, making them indispensable for high-purity water needs.
Tip: Decision-makers should evaluate the scale and purpose of their water treatment project to determine the most cost-effective option.
Maintenance Requirements
Maintenance plays a critical role in the long-term performance of both technologies. Hollow fiber membranes require periodic cleaning to prevent fouling caused by suspended particles and microorganisms. Their modular design simplifies maintenance, reducing downtime and associated costs. Regular inspections and chemical cleaning ensure consistent performance over time.
Reverse osmosis systems demand more intensive maintenance. High-pressure operations increase the likelihood of membrane fouling and scaling, necessitating frequent cleaning and replacement. Pretreatment systems, such as sediment filters and antiscalant dosing, are essential to protect the membranes. While these measures enhance system longevity, they also contribute to ongoing maintenance costs.
Note: Proper maintenance schedules can extend the lifespan of both systems, reducing overall operational costs.
Long-Term Affordability
When assessing long-term affordability, hollow fiber membranes often emerge as the more economical choice. Their lower energy consumption and minimal wastewater production reduce operational costs significantly. Over a 20-year period, lifecycle cost assessments reveal that hybrid processes incorporating hollow fiber membranes, such as the FO–RO system, can save approximately 63 million USD compared to conventional reverse osmosis systems. These savings stem from reduced energy usage and lower capital expenditures.
Reverse osmosis systems, while effective, incur higher operational costs due to energy-intensive processes and frequent membrane replacements. However, advancements in technology, such as energy recovery devices, aim to improve their economic efficiency. For applications requiring high-purity water, the long-term benefits of reverse osmosis may outweigh its higher costs.
Fact: Choosing the right system involves balancing initial costs, maintenance requirements, and long-term affordability to meet specific water treatment goals.
Conclusion
Hollow fiber membranes and reverse osmosis excel in different areas of water filtration. Hollow fiber membranes stand out for their energy efficiency and low wastewater production, making them ideal for ultrafiltration tasks. Reverse osmosis, however, offers superior performance in removing dissolved solids, ensuring high-purity water.
Key takeaway: Selecting the right technology depends on specific needs, such as the type of contaminants, budget, and environmental priorities. Both systems provide valuable solutions for diverse water treatment challenges.
